Port and Terminal Conveying Solutions

The Most Rugged Telescoping Conveyor In The World

MASABA’s patented Magnum Telescoping Radial Stacking Conveyors and Drive Over Truck Unloaders provide maximum operational efficiency and minimizes labor on site.

Eliminate double handling of material and easily load barges and vessels with MASABA’s portable material handling equipment.


Standard Features:

  • Heavy Duty Pulleys
  • Patented Gen2 Drive System
  • Brand Leading Components
  • Class II Drives
  • Various CEMA Class Idlers
  • 3 Ply Belting
  • Onboard Counterweight Standard
  • Heavy-Duty Tow Hitch
  • Quick Attach Side Mesh Guarding

Axle Configurations

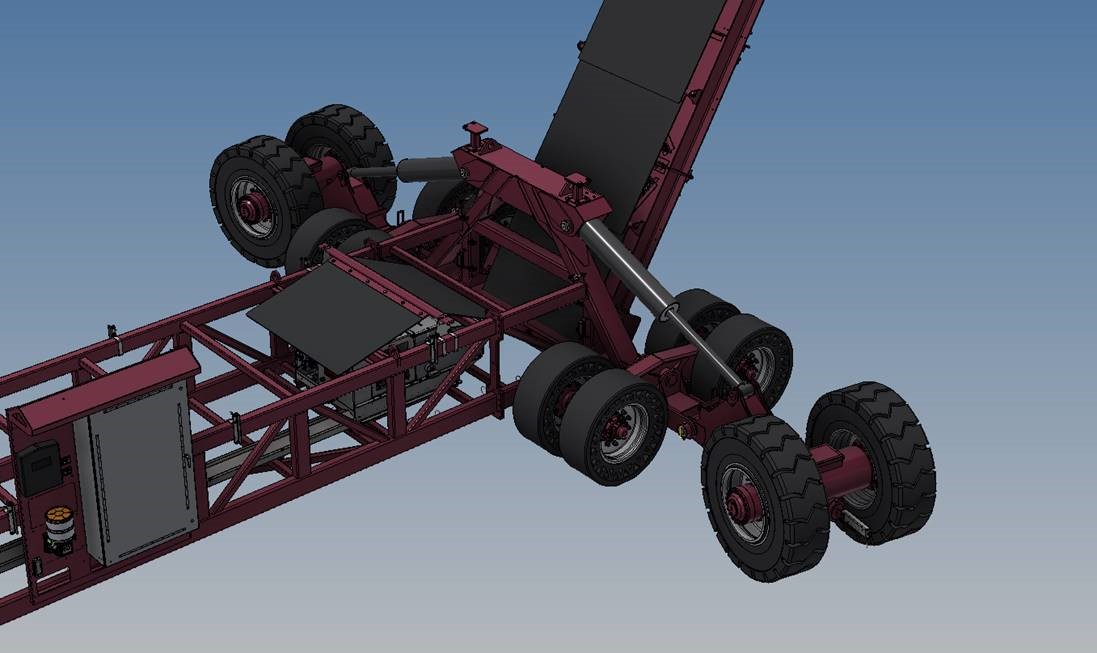

Masaba’s Heavy Duty Fold Away Axle configuration offers solid tires and planetary drives and is ideal for large conveyors in highly mobile installations. This undercarriage offers high load carrying capabilities while allowing quick and safe transition between transport and operational modes. HDFA undercarriage allows radial travel movement and in-line towing of the conveyor.

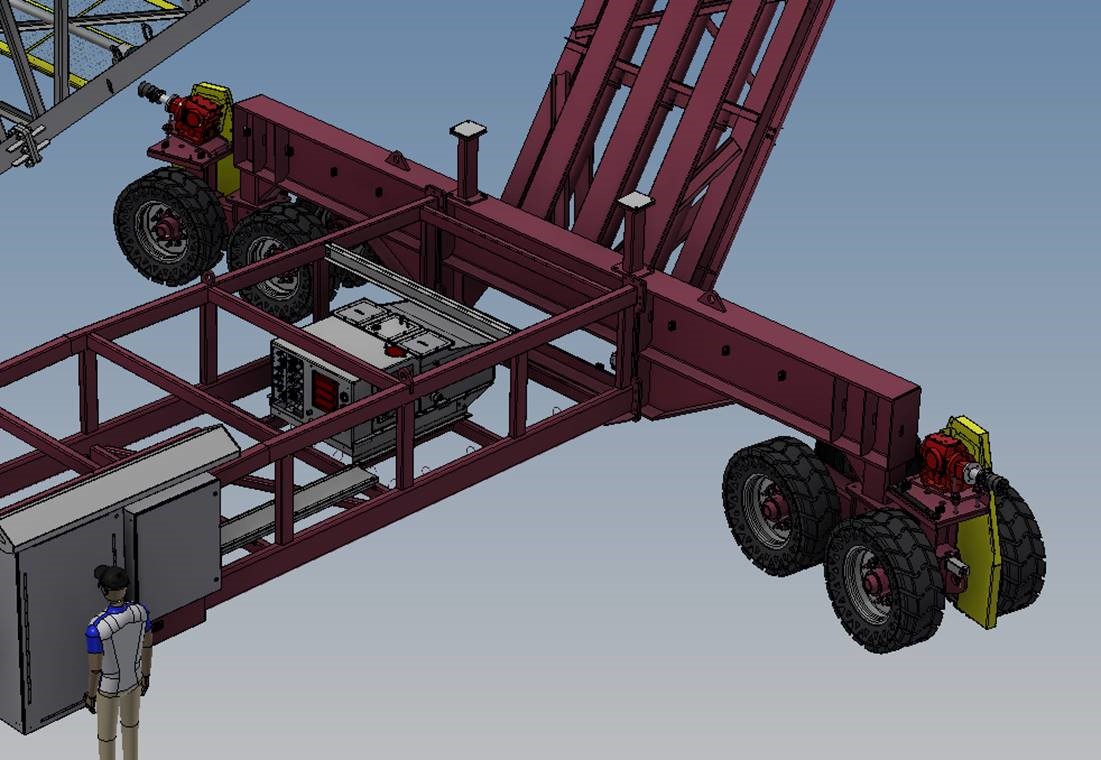

The Fixed I-Beam With Tandem Axle Undercarriage configuration offers chain driven solid tires and is ideal for large conveyors in permanent installations. This undercarriage offers one of the highest load carrying capabilities while maintaining a simpler, cost effective design. This undercarriage allows radial travel movement but does not allow in-line towing of the conveyor.

The Swing Axle configurations are equipped with pneumatic tires and are ideal for small to mid-size conveyors in semi-mobile installations. SA undercarriage offers radial as well as road transport capabilities on certain models while allowing transformation between transport and operational modes.disengage the drive simply by flipping a lever on the hub.

With our patented Gen2 Drive System, MASABA’s Magnum is the safest, most rugged telescoping conveyor on the market. The patented design provides constant positive traction and smoother operation of the stinger, improving long term durability with minimal annual maintenance required. Ranging in sizes up to 190 feet, we have a Magnum to suit your needs.


Masaba Drive Over Truck Unloader

  1. Self cleaning hydraulic ramps
  2. Extended ramp option
  3. 20 HP electric auxiliary hydraulic pump
  4. NEMA 4 control panel
  5. Optional self-deploying ramps
  6. Heavy duty steel ramps to grade
  7. Hydraulically adjustable discharge height
  8. Class II dual drives
  9. Removable drive-over grizzly bars
  10. Optional Gen Set

48″ & 72″ Dual Lane Truck Unloaders available upon request.

All dimensions subject to change and may vary based on axle configurations, options, etc.
